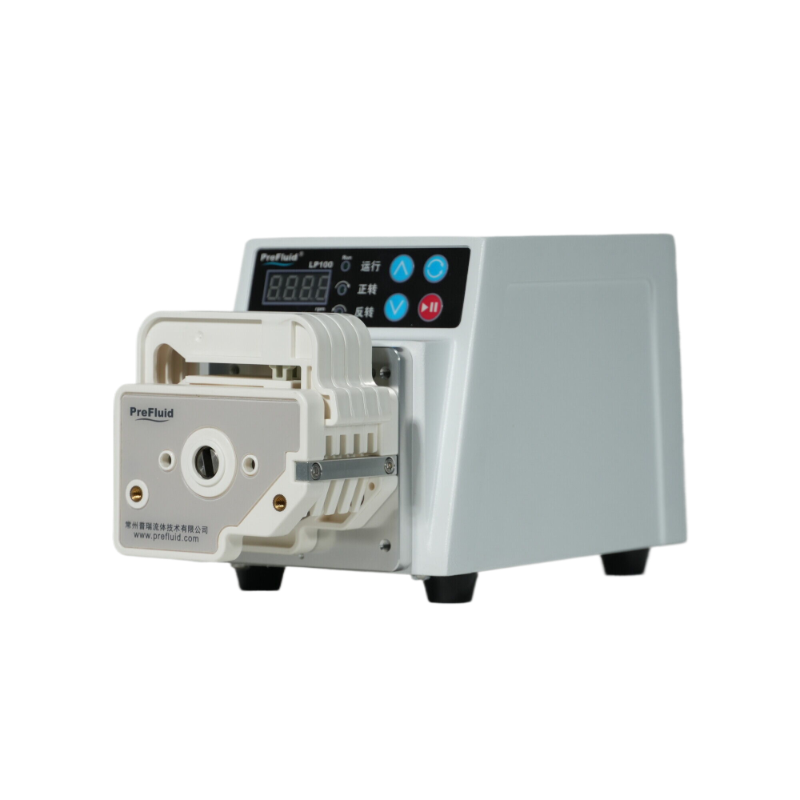

LP101-KZ15

The LP101-KZ15 peristaltic pump belongs to the PURE Fluid 100 series peristaltic pumps. It is a basic, variable-speed peristaltic pump for basic laboratory applications, mainly used for continuous material transfer. Typical applications include laboratory liquid transfer, reagent addition, and acid/alkali replenishment in fermenters.

INQUIRE NOW

Previous: No more data

Next: LP101-YZ15

Specifications

Documents

Videos

Speed resolution	1~200rpm
Speed range	0.1rpm
Motor type	Integrated stepper motor
Noise level	≤65dB (at 30cm in front of the product)
Applicable power supply	24VDC
Power consumption	≤50W
Driver weight	3.4KG
Display method	Four-digit digital display showing speed, parameters, etc.; three LEDs indicating forward, reverse, start/stop, etc.
Operation method	Four touch buttons for adjusting pump parameters and starting/stopping
External control method	Dry contact signal controls start/stop and direction; analog signal (4~20mA 0~10V) controls speed; RS485 and RS232 communication methods control start/stop, direction, and speed
Protection level	IP54
Operating environment	Temperature 0~40°C; Relative humidity <80%;
